Spring高级45讲【第三章】：AOP

代理增强方式

aspectj编译器增强

先看一组例子：

pom.xml文件中增加插件：

<plugin>
    <groupId>org.codehaus.mojo</groupId>
    <artifactId>aspectj-maven-plugin</artifactId>
    <version>1.14.0</version>
    <configuration>
        <complianceLevel>1.8</complianceLevel>
        <source>8</source>
        <target>8</target>
        <showWeaveInfo>true</showWeaveInfo>
        <verbose>true</verbose>
        <Xlint>ignore</Xlint>
        <encoding>UTF-8</encoding>
    </configuration>
    <executions>
        <execution>
            <goals>
                <!-- use this goal to weave all your main classes -->
                <goal>compile</goal>
                <!-- use this goal to weave all your test classes -->
                <goal>test-compile</goal>
            </goals>
        </execution>
    </executions>
</plugin>

编写com.itheima.service.MyService类：

@Service
public class MyService {

    private static final Logger log = LoggerFactory.getLogger(MyService.class);

    public static void foo() {
        log.debug("foo()");
    }
}

编写com.itheima.aop.MyAspect类：

/**
* ⬅️注意此切面并未被 Spring 管理
*/
@Aspect
public class MyAspect {

    private static final Logger log = LoggerFactory.getLogger(MyAspect.class);

    @Before("execution(* com.itheima.service.MyService.foo())")
    public void before() {
        log.debug("before()");
    }
}

MyAspect类代理了MyService类，增加了前置通知。

编写启动类com.itheima.A09：

@SpringBootApplication
public class A09 {

    private static final Logger log = LoggerFactory.getLogger(A09.class);

    public static void main(String[] args) {
        new MyService().foo();
    }
}

运行启动类，查看控制台：

11:35:42.441 [main] DEBUG com.itheima.aop.MyAspect - before()
11:35:42.444 [main] DEBUG com.itheima.service.MyService - foo()

aspectj编译器增强时在编译阶段直接修改类文件，并且不需要依赖spring容器，我们查看被改写的类文件：

@Service
public class MyService {
    private static final Logger log = LoggerFactory.getLogger(MyService.class);

    public MyService() {
    }

    public static void foo() {
        MyAspect.aspectOf().before();
        log.debug("foo()");
    }
}

发现直接在目标方法前加上了我们的前置增强方法。

当jdk代理和cglib代理都不能使用时，可以考虑使用此方式实现代理。

agent类加载增强

先看一组例子：

编写com.itheima.service.MyService类

@Service
public class MyService {

    private static final Logger log = LoggerFactory.getLogger(MyService.class);

    final public void foo() {
        log.debug("foo()");
        this.bar();
    }

    public void bar() {
        log.debug("bar()");
    }
}

编写com.itheima.aop.MyAspect类：

/**
* ⬅️注意此切面并未被 Spring 管理
*/
@Aspect
public class MyAspect {

    private static final Logger log = LoggerFactory.getLogger(MyAspect.class);

    @Before("execution(* com.itheima.service.MyService.*())")
    public void before() {
        log.debug("before()");
    }
}

MyAspect类代理了MyService类，并对所有方法增加了前置通知。

编写启动类com.itheima.A10：

/*
    注意几点
    1. 版本选择了 java 8, 因为目前的 aspectj-maven-plugin 1.14.0 最高只支持到 java 16
    2. 运行时需要在 VM options 里加入 -javaagent:C:/Users/manyh/.m2/repository/org/aspectj/aspectjweaver/1.9.7/aspectjweaver-1.9.7.jar
        把其中 C:/Users/manyh/.m2/repository 改为你自己 maven 仓库起始地址
 */
@SpringBootApplication
public class A10 {

    private static final Logger log = LoggerFactory.getLogger(A10.class);

    public static void main(String[] args) {
        ConfigurableApplicationContext context = SpringApplication.run(A10.class, args);
        MyService service = context.getBean(MyService.class);

        // ⬇️MyService 并非代理, 但 foo 方法也被增强了, 做增强的 java agent, 在加载类时, 修改了 class 字节码
        log.debug("service class: {}", service.getClass());
        service.foo();

        context.close();

    }
}

agent类增强是在类加载阶段修改类文件进行的增强，运行时需要加上虚拟机参数：

-javaagent:C:/Users/WolfMan/.m2/repository/org/aspectj/aspectjweaver/1.9.7/aspectjweaver-1.9.7.jar

运行启动类，查看控制台：

2023-03-27 14:49:59.773 DEBUG 30220 --- [           main] com.itheima.aop.MyAspect                 : before()
2023-03-27 14:49:59.773 DEBUG 30220 --- [           main] com.itheima.service.MyService            : foo()
2023-03-27 14:49:59.773 DEBUG 30220 --- [           main] com.itheima.aop.MyAspect                 : before()
2023-03-27 14:49:59.773 DEBUG 30220 --- [           main] com.itheima.service.MyService            : bar()

这种代理方式突破了普通代理的限制，即在一个方法内调用另外的方法，这两个方法都被代理了，而普通的代理只能代理被调用的方法。

打开arthas，连接目标进程，使用jad命令反编译MyService类：

package com.itheima.service;

import com.itheima.aop.MyAspect;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Service;

@Service
public class MyService {
   private static final Logger log = LoggerFactory.getLogger(MyService.class);

   public final void foo() {
       MyAspect.aspectOf().before();
       log.debug("foo()");
       this.bar();
   }

   public void bar() {
       MyAspect.aspectOf().before();
       log.debug("bar()");
   }
}

发现在方法前插入了我们增强的方法。

jdk代理增强

演示代码：

public class JdkProxyDemo {

    interface Foo {
        void foo();
    }

    static final class Target implements Foo {
        public void foo() {
            System.out.println("target foo");
        }
    }

    // jdk 只能针对接口代理
    public static void main(String[] param) throws IOException {
        // 目标对象
        Target target = new Target();
        // 用来加载在运行期间动态生成的字节码
        ClassLoader loader = JdkProxyDemo.class.getClassLoader();
        Foo proxy = (Foo) Proxy.newProxyInstance(loader, new Class[]{Foo.class}, (p, method, args) -> {
            System.out.println("before...");
            // 目标.方法(参数)
            // 方法.invoke(目标, 参数);
            Object result = method.invoke(target, args);
            System.out.println("after....");
            return result; // 让代理也返回目标方法执行的结果
        });

        System.out.println(proxy.getClass());

        proxy.foo();

        System.in.read();
    }
}

运行main()方法，查看控制台：

class com.itheima.a11.$Proxy0
before...
target foo
after....

发现对象被代理了，打印出我们真实调用的对象实际上是一个代理类对象。

invoke方法的参数：

• Object：代表代理类自身
• Method：代表代理类正在执行的方法
• Object[]：代表正在执行方法传入的参数

jdk代理的特点：

• 被代理对象与代理对象为兄弟关系，都实现了父接口
• 被代理对象如果被final修饰没有影响

cglib代理增强

实例代码：

public class CglibProxyDemo {

    static class Target {
        public void foo() {
            System.out.println("target foo");
        }
    }

    // 代理是子类型, 目标是父类型
    public static void main(String[] param) {
        Target target = new Target();

        Target proxy = (Target) Enhancer.create(Target.class, (MethodInterceptor) (p, method, args, methodProxy) -> {
            System.out.println("before...");
            Object result = method.invoke(target, args); // 用方法反射调用目标
            System.out.println("after...");
            return result;
        });

        proxy.foo();

    }
}

运行main()方法，查看控制台：

before...
target foo
after...

MethodInterceptor参数含义：

• Object：代表代理类自身
• Method：代表代理类正在执行的方法
• Object[]：代表正在执行方法传入的参数
• MethodProxy：一个方法对象，提供更多功能

cgilib代理的特点：

• 被代理对象与代理对象为父子关系，代理对象继承了被代理对象
• 被代理对象或者方法为final都不能使用cglib代理

MethodInterceptor参数中的methodProxy有两个方法可以避免反射调用：

• methodProxy.invoke(target, args)：内部没有用反射, 需要目标(spring使用的这种方式)
• methodProxy.invokeSuper(p, args)：内部没有用反射, 需要代理

实例使用：

Object result = methodProxy.invoke(target, args); // 内部没有用反射, 需要目标 （spring）
Object result = methodProxy.invokeSuper(p, args); // 内部没有用反射, 需要代理

jdk动态代理原理

模拟jdk动态代理

代码演示：

// 被代理对象实现的接口
interface Foo {
    void foo();

    int bar();
}

// 自己实现的InvocationHandler接口
interface InvocationHandler {
    Object invoke(Object proxy, Method method, Object[] args) throws Throwable;
}

// 被代理对象
class Target implements Foo {
    public void foo() {
        System.out.println("target foo");
    }

    @Override
    public int bar() {
        System.out.println("target bar");
        return 100;
    }
}

// 代理类
public class $Proxy0 implements Foo {

    static Method foo;
    static Method bar;

    static {
        try {
            foo = Foo.class.getMethod("foo");
            bar = Foo.class.getMethod("bar");
        } catch (NoSuchMethodException e) {
            throw new NoSuchMethodError(e.getMessage());
        }
    }

    InvocationHandler h;

    public $Proxy0(InvocationHandler h) {
        this.h = h;
    }

    @Override
    public void foo() {
        try {
            h.invoke(this, foo, new Object[0]);
        } catch (RuntimeException | Error e) {
            throw e;
        } catch (Throwable e) {
            throw new UndeclaredThrowableException(e);
        }
    }

    @Override
    public int bar() {
        try {
            Object result = h.invoke(this, bar, new Object[0]);
            return (int) result;
        } catch (RuntimeException | Error e) {
            throw e;
        } catch (Throwable e) {
            throw new UndeclaredThrowableException(e);
        }
    }


}

// 使用自己实现的代理类
public class A12 {

    public static void main(String[] param) {
        Foo proxy = new $Proxy0(new InvocationHandler() {
            @Override
            public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
                // 1. 功能增强
                System.out.println("before...");
                // 2. 调用目标
                return method.invoke(new Target(), args);
            }
        });
        proxy.foo();
        proxy.bar();
    }
}

模拟jdk动态代理思路：

1. 方法重写可以增强逻辑, 只不过这增强逻辑千变万化, 不能写死在代理内部
2. 通过接口回调将增强逻辑置于代理类之外
3. 配合接口方法反射(也是多态)，就可以再联动调用目标方法

jdk动态代理源码

打开arthas：

C:/Path/jdk1.8.0_152/bin/java  -jar arthas-boot.jar

连接进程，使用jad命令查看运行时的源码：

package com.itheima.a11;

import com.itheima.a11.JdkProxyDemo;
import java.lang.invoke.MethodHandles;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Method;
import java.lang.reflect.Proxy;
import java.lang.reflect.UndeclaredThrowableException;

final class $Proxy0
extends Proxy
implements JdkProxyDemo.Foo {
    private static final Method m0;
    private static final Method m1;
    private static final Method m2;
    private static final Method m3;

    public $Proxy0(InvocationHandler invocationHandler) {
        super(invocationHandler);
    }

    static {
        ClassLoader classLoader = $Proxy0.class.getClassLoader();
        try {
            m0 = Class.forName("java.lang.Object", false, classLoader).getMethod("hashCode", new Class[0]);
            m1 = Class.forName("java.lang.Object", false, classLoader).getMethod("equals", Class.forName("java.lang.Object", false, classLoader));
            m2 = Class.forName("java.lang.Object", false, classLoader).getMethod("toString", new Class[0]);
            m3 = Class.forName("com.itheima.a11.JdkProxyDemo$Foo", false, classLoader).getMethod("foo", new Class[0]);
            return;
        }
        catch (NoSuchMethodException noSuchMethodException) {
            throw new NoSuchMethodError(noSuchMethodException.getMessage());
        }
        catch (ClassNotFoundException classNotFoundException) {
            throw new NoClassDefFoundError(classNotFoundException.getMessage());
        }
    }

    public final boolean equals(Object object) {
        try {
            return (Boolean)this.h.invoke(this, m1, new Object[]{object});
        }
        catch (Error | RuntimeException throwable) {
            throw throwable;
        }
        catch (Throwable throwable) {
            throw new UndeclaredThrowableException(throwable);
        }
    }

    public final String toString() {
        try {
            return (String)this.h.invoke(this, m2, null);
        }
        catch (Error | RuntimeException throwable) {
            throw throwable;
        }
        catch (Throwable throwable) {
            throw new UndeclaredThrowableException(throwable);
        }
    }

    public final int hashCode() {
        try {
            return (Integer)this.h.invoke(this, m0, null);
        }
        catch (Error | RuntimeException throwable) {
            throw throwable;
        }
        catch (Throwable throwable) {
            throw new UndeclaredThrowableException(throwable);
        }
    }

    public final void foo() {
        try {
            this.h.invoke(this, m3, null);
            return;
        }
        catch (Error | RuntimeException throwable) {
            throw throwable;
        }
        catch (Throwable throwable) {
            throw new UndeclaredThrowableException(throwable);
        }
    }

    private static MethodHandles.Lookup proxyClassLookup(MethodHandles.Lookup lookup) throws IllegalAccessException {
        if (lookup.lookupClass() == Proxy.class && lookup.hasFullPrivilegeAccess()) {
            return MethodHandles.lookup();
        }
        throw new IllegalAccessException(lookup.toString());
    }
}

jdk直接生成字节码使用的技术是ASM，接下来演示ASM生成的字节码。

在idea中安装ASM Bytecode Viewer Support Kotlin插件，编写以下代码：

// 代理接口
public interface Foo {
    public void foo();
}

// 代理类
public class $Proxy0 extends Proxy implements Foo {
    static Method foo;

    public $Proxy0(InvocationHandler h) {
        super(h);
    }

    public void foo() {
        try {
            this.h.invoke(this, foo, null);
        } catch (Throwable var2) {
            throw new UndeclaredThrowableException(var2);
        }
    }

    static {
        try {
            foo = Foo.class.getMethod("foo");
        } catch (NoSuchMethodException var1) {
            throw new NoSuchMethodError(var1.getMessage());
        }
    }
}

编译这两个类，在$Proxy0中右键ASM Bytecode Viewer，选择ASMified选项：

package asm.com.itheima;

import org.objectweb.asm.AnnotationVisitor;
import org.objectweb.asm.Attribute;
import org.objectweb.asm.ClassReader;
import org.objectweb.asm.ClassWriter;
import org.objectweb.asm.ConstantDynamic;
import org.objectweb.asm.FieldVisitor;
import org.objectweb.asm.Handle;
import org.objectweb.asm.Label;
import org.objectweb.asm.MethodVisitor;
import org.objectweb.asm.Opcodes;
import org.objectweb.asm.Type;
import org.objectweb.asm.TypePath;

public class $Proxy0Dump implements Opcodes {

    public static byte[] dump() throws Exception {

        ClassWriter classWriter = new ClassWriter(0);
        FieldVisitor fieldVisitor;
        MethodVisitor methodVisitor;
        AnnotationVisitor annotationVisitor0;

        // 定义类
        classWriter.visit(V1_8, ACC_PUBLIC | ACC_SUPER, "com/itheima/$Proxy0", null, "java/lang/reflect/Proxy", new String[]{"com/itheima/Foo"});

        {
            // 定义静态成员变量
            fieldVisitor = classWriter.visitField(ACC_STATIC, "foo", "Ljava/lang/reflect/Method;", null, null);
            fieldVisitor.visitEnd();
        }
        {
            // 定义构造方法
            methodVisitor = classWriter.visitMethod(ACC_PUBLIC, "<init>", "(Ljava/lang/reflect/InvocationHandler;)V", null, null);
            // 定义方法内的字节码
            methodVisitor.visitCode();
            methodVisitor.visitVarInsn(ALOAD, 0);
            methodVisitor.visitVarInsn(ALOAD, 1);
            methodVisitor.visitMethodInsn(INVOKESPECIAL, "java/lang/reflect/Proxy", "<init>", "(Ljava/lang/reflect/InvocationHandler;)V", false);
            methodVisitor.visitInsn(RETURN);
            methodVisitor.visitMaxs(2, 2);
            methodVisitor.visitEnd();
        }
        {
            // 定义方法
            methodVisitor = classWriter.visitMethod(ACC_PUBLIC, "foo", "()V", null, null);
            methodVisitor.visitCode();
            Label label0 = new Label();
            Label label1 = new Label();
            Label label2 = new Label();
            methodVisitor.visitTryCatchBlock(label0, label1, label2, "java/lang/Throwable");
            methodVisitor.visitLabel(label0);
            methodVisitor.visitVarInsn(ALOAD, 0);
            methodVisitor.visitFieldInsn(GETFIELD, "com/itheima/$Proxy0", "h", "Ljava/lang/reflect/InvocationHandler;");
            methodVisitor.visitVarInsn(ALOAD, 0);
            methodVisitor.visitFieldInsn(GETSTATIC, "com/itheima/$Proxy0", "foo", "Ljava/lang/reflect/Method;");
            methodVisitor.visitInsn(ACONST_NULL);
            methodVisitor.visitMethodInsn(INVOKEINTERFACE, "java/lang/reflect/InvocationHandler", "invoke", "(Ljava/lang/Object;Ljava/lang/reflect/Method;[Ljava/lang/Object;)Ljava/lang/Object;", true);
            methodVisitor.visitInsn(POP);
            methodVisitor.visitLabel(label1);
            Label label3 = new Label();
            methodVisitor.visitJumpInsn(GOTO, label3);
            methodVisitor.visitLabel(label2);
            methodVisitor.visitVarInsn(ASTORE, 1);
            methodVisitor.visitTypeInsn(NEW, "java/lang/reflect/UndeclaredThrowableException");
            methodVisitor.visitInsn(DUP);
            methodVisitor.visitVarInsn(ALOAD, 1);
            methodVisitor.visitMethodInsn(INVOKESPECIAL, "java/lang/reflect/UndeclaredThrowableException", "<init>", "(Ljava/lang/Throwable;)V", false);
            methodVisitor.visitInsn(ATHROW);
            methodVisitor.visitLabel(label3);
            methodVisitor.visitInsn(RETURN);
            methodVisitor.visitMaxs(4, 2);
            methodVisitor.visitEnd();
        }
        {
            methodVisitor = classWriter.visitMethod(ACC_STATIC, "<clinit>", "()V", null, null);
            methodVisitor.visitCode();
            Label label0 = new Label();
            Label label1 = new Label();
            Label label2 = new Label();
            methodVisitor.visitTryCatchBlock(label0, label1, label2, "java/lang/NoSuchMethodException");
            methodVisitor.visitLabel(label0);
            methodVisitor.visitLdcInsn(Type.getType("Lcom/itheima/Foo;"));
            methodVisitor.visitLdcInsn("foo");
            methodVisitor.visitInsn(ICONST_0);
            methodVisitor.visitTypeInsn(ANEWARRAY, "java/lang/Class");
            methodVisitor.visitMethodInsn(INVOKEVIRTUAL, "java/lang/Class", "getMethod", "(Ljava/lang/String;[Ljava/lang/Class;)Ljava/lang/reflect/Method;", false);
            methodVisitor.visitFieldInsn(PUTSTATIC, "com/itheima/$Proxy0", "foo", "Ljava/lang/reflect/Method;");
            methodVisitor.visitLabel(label1);
            Label label3 = new Label();
            methodVisitor.visitJumpInsn(GOTO, label3);
            methodVisitor.visitLabel(label2);
            methodVisitor.visitVarInsn(ASTORE, 0);
            methodVisitor.visitTypeInsn(NEW, "java/lang/NoSuchMethodError");
            methodVisitor.visitInsn(DUP);
            methodVisitor.visitVarInsn(ALOAD, 0);
            methodVisitor.visitMethodInsn(INVOKEVIRTUAL, "java/lang/NoSuchMethodException", "getMessage", "()Ljava/lang/String;", false);
            methodVisitor.visitMethodInsn(INVOKESPECIAL, "java/lang/NoSuchMethodError", "<init>", "(Ljava/lang/String;)V", false);
            methodVisitor.visitInsn(ATHROW);
            methodVisitor.visitLabel(label3);
            methodVisitor.visitInsn(RETURN);
            methodVisitor.visitMaxs(3, 1);
            methodVisitor.visitEnd();
        }
        classWriter.visitEnd();

        // 生成字节数组
        return classWriter.toByteArray();
    }
}

我们可以使用此类生成代码：

public class TestProxy {
    public static void main(String[] args) throws Exception {
        byte[] dump = $Proxy0Dump.dump();

        FileOutputStream os = new FileOutputStream("$Proxy0.class");
        os.write(dump, 0, dump.length);
        os.close();
    }
}

在项目目录下生成文件$Proxy0.class：

package com.itheima;

import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Method;
import java.lang.reflect.Proxy;
import java.lang.reflect.UndeclaredThrowableException;

public class $Proxy0 extends Proxy implements Foo {
    static Method foo;

    public $Proxy0(InvocationHandler h) {
        super(h);
    }

    public void foo() {
        try {
            this.h.invoke(this, foo, (Object[])null);
        } catch (Throwable var2) {
            throw new UndeclaredThrowableException(var2);
        }
    }

    static {
        try {
            foo = Foo.class.getMethod("foo");
        } catch (NoSuchMethodException var1) {
            throw new NoSuchMethodError(var1.getMessage());
        }
    }
}

我们也可以使用$Proxy0Dump类调用方法：

public class TestProxy {
    public static void main(String[] args) throws Exception {
        byte[] dump = $Proxy0Dump.dump();
        ClassLoader loader = new ClassLoader() {
            @Override
            protected Class<?> findClass(String name) throws ClassNotFoundException {
                return super.defineClass(name, dump, 0, dump.length);
            }
        };
        Class<?> proxyClass = loader.loadClass("com.itheima.$Proxy0");

        Constructor<?> constructor = proxyClass.getConstructor(InvocationHandler.class);
        Foo proxy = (Foo) constructor.newInstance(new InvocationHandler() {
            @Override
            public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
                System.out.println("before...");
                System.out.println("调用目标");
                return null;
            }
        });

        proxy.foo();
    }
}

运行main()方法，查看控制台：

before...
调用目标

jdk反射优化

编写测试类：

import java.lang.reflect.Field;
import java.lang.reflect.Method;

// 运行时请添加 --add-opens java.base/java.lang.reflect=ALL-UNNAMED --add-opens java.base/jdk.internal.reflect=ALL-UNNAMED
public class TestMethodInvoke {
    public static void main(String[] args) throws Exception {
        Method foo = TestMethodInvoke.class.getMethod("foo", int.class);
        for (int i = 1; i <= 17; i++) {
            show(i, foo);
            foo.invoke(null, i);
        }
        System.in.read();
    }

    // 方法反射调用时, 底层 MethodAccessor 的实现类
    private static void show(int i, Method foo) throws Exception {
        Method getMethodAccessor = Method.class.getDeclaredMethod("getMethodAccessor");
        getMethodAccessor.setAccessible(true);
        Object invoke = getMethodAccessor.invoke(foo);
        if (invoke == null) {
            System.out.println(i + ":" + null);
            return;
        }
        Field delegate = Class.forName("jdk.internal.reflect.DelegatingMethodAccessorImpl").getDeclaredField("delegate");
        delegate.setAccessible(true);
        System.out.println(i + ":" + delegate.get(invoke));
    }

    public static void foo(int i) {
        System.out.println(i + ":" + "foo");
    }
}

运行启动类，查看控制台输出：

1:null
1:foo
2:jdk.internal.reflect.NativeMethodAccessorImpl@5b37e0d2
2:foo
3:jdk.internal.reflect.NativeMethodAccessorImpl@5b37e0d2
3:foo
4:jdk.internal.reflect.NativeMethodAccessorImpl@5b37e0d2
4:foo
5:jdk.internal.reflect.NativeMethodAccessorImpl@5b37e0d2
5:foo
6:jdk.internal.reflect.NativeMethodAccessorImpl@5b37e0d2
6:foo
7:jdk.internal.reflect.NativeMethodAccessorImpl@5b37e0d2
7:foo
8:jdk.internal.reflect.NativeMethodAccessorImpl@5b37e0d2
8:foo
9:jdk.internal.reflect.NativeMethodAccessorImpl@5b37e0d2
9:foo
10:jdk.internal.reflect.NativeMethodAccessorImpl@5b37e0d2
10:foo
11:jdk.internal.reflect.NativeMethodAccessorImpl@5b37e0d2
11:foo
12:jdk.internal.reflect.NativeMethodAccessorImpl@5b37e0d2
12:foo
13:jdk.internal.reflect.NativeMethodAccessorImpl@5b37e0d2
13:foo
14:jdk.internal.reflect.NativeMethodAccessorImpl@5b37e0d2
14:foo
15:jdk.internal.reflect.NativeMethodAccessorImpl@5b37e0d2
15:foo
16:jdk.internal.reflect.NativeMethodAccessorImpl@5b37e0d2
16:foo
17:jdk.internal.reflect.GeneratedMethodAccessor2@2d38eb89
17:foo

我们发现前面16次调用都是使用jdk.internal.reflect.NativeMethodAccessorImpl@5b37e0d2，这个实现是使用java本地api实现的，性能比较低。

我们可以使用arthas查看jdk.internal.reflect.GeneratedMethodAccessor2的实现：

package jdk.internal.reflect;

import com.itheima.a12.TestMethodInvoke;
import java.lang.reflect.InvocationTargetException;
import jdk.internal.reflect.MethodAccessorImpl;

public class GeneratedMethodAccessor2
extends MethodAccessorImpl {
    /*
     * Loose catch block
     */
    public Object invoke(Object object, Object[] objectArray) throws InvocationTargetException {
        char c;
        block9: {
            if (objectArray.length != 1) {
                throw new IllegalArgumentException();
            }
            Object object2 = objectArray[0];
            if (object2 instanceof Byte) {
                c = ((Byte)object2).byteValue();
                break block9;
            }
            if (object2 instanceof Character) {
                c = ((Character)object2).charValue();
                break block9;
            }
            if (object2 instanceof Short) {
                c = (char)((Short)object2).shortValue();
                break block9;
            }
            if (object2 instanceof Integer) {
                c = (char)((Integer)object2).intValue();
                break block9;
            }
            throw new IllegalArgumentException();
        }
        try {
            // 直接调用，没有使用反射调用
            TestMethodInvoke.foo((int)c);
            return null;
        }
        catch (Throwable throwable) {
            throw new InvocationTargetException(throwable);
        }
        catch (ClassCastException | NullPointerException runtimeException) {
            throw new IllegalArgumentException(super.toString());
        }
    }
}

我们发现jdk在运行时直接生成了jdk.internal.reflect.GeneratedMethodAccessor2类，然后直接调用其方法，避免了反射调用的性能损耗。缺点是每个方法都需要生成一个代理类，而cglib是一个类所有方法的代理生成两个代理类进行直接调用。

cglib动态代理原理

模拟cglib动态代理

代码演示：

// 代理目标类
public class Target {
    public void save() {
        System.out.println("save()");
    }

    public void save(int i) {
        System.out.println("save(int)");
    }

    public void save(long j) {
        System.out.println("save(long)");
    }
}

//代理类
public class Proxy extends Target {

    private MethodInterceptor methodInterceptor;

    public void setMethodInterceptor(MethodInterceptor methodInterceptor) {
        this.methodInterceptor = methodInterceptor;
    }

    static Method save0;
    static Method save1;
    static Method save2;
    static MethodProxy save0Proxy;
    static MethodProxy save1Proxy;
    static MethodProxy save2Proxy;
    static {
        try {
            save0 = Target.class.getMethod("save");
            save1 = Target.class.getMethod("save", int.class);
            save2 = Target.class.getMethod("save", long.class);
            //"()V" 代表参数为空，返回值为void， "(I)V"代表参数为int类型，返回值为空
            save0Proxy = MethodProxy.create(Target.class, Proxy.class, "()V", "save", "saveSuper");
            save1Proxy = MethodProxy.create(Target.class, Proxy.class, "(I)V", "save", "saveSuper");
            save2Proxy = MethodProxy.create(Target.class, Proxy.class, "(J)V", "save", "saveSuper");
        } catch (NoSuchMethodException e) {
            throw new NoSuchMethodError(e.getMessage());
        }
    }

    // >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 带原始功能的方法
    public void saveSuper() {
        super.save();
    }
    public void saveSuper(int i) {
        super.save(i);
    }
    public void saveSuper(long j) {
        super.save(j);
    }
    // >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> 带增强功能的方法
    @Override
    public void save() {
        try {
            methodInterceptor.intercept(this, save0, new Object[0], save0Proxy);
        } catch (Throwable e) {
            throw new UndeclaredThrowableException(e);
        }
    }

    @Override
    public void save(int i) {
        try {
            methodInterceptor.intercept(this, save1, new Object[]{i}, save1Proxy);
        } catch (Throwable e) {
            throw new UndeclaredThrowableException(e);
        }
    }

    @Override
    public void save(long j) {
        try {
            methodInterceptor.intercept(this, save2, new Object[]{j}, save2Proxy);
        } catch (Throwable e) {
            throw new UndeclaredThrowableException(e);
        }
    }
}

// 启动类
public class A13 {

    public static void main(String[] args) {
        Proxy proxy = new Proxy();
        Target target = new Target();
        proxy.setMethodInterceptor(new MethodInterceptor() {
            @Override
            public Object intercept(Object p, Method method, Object[] args,
                                    MethodProxy methodProxy) throws Throwable {
                System.out.println("before...");
                return method.invoke(target, args); // 反射调用
                // FastClass
//                return methodProxy.invoke(target, args); // 内部无反射, 结合目标用
//                return methodProxy.invokeSuper(p, args); // 内部无反射, 结合代理用
            }
        });

        proxy.save();
        proxy.save(1);
        proxy.save(2L);
    }
}

运行启动类，查看控制台：

before...
save()
before...
save(int)
before...
save(long)

MethodProxy原理

methodProxy的invoke()方法和invokeSuper()方法都可以避免反射调用，以提高动态代理的性能，接下来我们介绍这两种方法。

invoke()

cglib在调用invoke()方法和invokeSuper()方法的时候会生成两个代理类，这两个代理类都继承了org.springframework.cglib.reflect.FastClass，这两个代理类中的一些关键方法就避免了反射。

其中有两个关键抽象方法：

public abstract int getIndex(Signature var1);
public abstract Object invoke(int var1, Object var2, Object[] var3) throws InvocationTargetException;

接下来模拟method.invoke()方法的实现，取名叫TargetFastClass，主要实现以上两个抽象方法的功能，TargetFastClass会在Proxy调用MethodProxy.create()的时候创建：

public class TargetFastClass {
    static Signature s0 = new Signature("save", "()V");
    static Signature s1 = new Signature("save", "(I)V");
    static Signature s2 = new Signature("save", "(J)V");

    /**
     * 根据方法信息获取目标方法的编号
     * Target
     *             save()              0
     *             save(int)           1
     *             save(long)          2
     * signature 包括方法名字、参数返回值
     * @param signature
     * @return
     */
    public int getIndex(Signature signature) {
        if (s0.equals(signature)) {
            return 0;
        } else if (s1.equals(signature)) {
            return 1;
        } else if (s2.equals(signature)) {
            return 2;
        }
        return -1;
    }

    /**
     * 根据方法编号, 正常调用目标对象方法
     * @param index
     * @param target
     * @param args
     * @return
     */
    public Object invoke(int index, Object target, Object[] args) {
        if (index == 0) {
            ((Target) target).save();
            return null;
        } else if (index == 1) {
            ((Target) target).save((int) args[0]);
            return null;
        } else if (index == 2) {
            ((Target) target).save((long) args[0]);
            return null;
        } else {
            throw new RuntimeException("无此方法");
        }
    }

    public static void main(String[] args) {
        TargetFastClass fastClass = new TargetFastClass();
        int index = fastClass.getIndex(new Signature("save", "(I)V"));
        fastClass.invoke(index, new Target(), new Object[]{100});
    }

}

method.invoke()调用流程：

1. 当proxy被创建时，会初始化方法信息，创建MethodProxy
2. 调用method.invoke(target, args)时，会先根据签名获取index
3. 根据传入的index，target，args参数调用TargetFastClass的invoke()方法

invokeSuper()

接下来模拟method.invoke()方法的实现，取名叫ProxyFastClass：

public class ProxyFastClass {
    static Signature s0 = new Signature("saveSuper", "()V");
    static Signature s1 = new Signature("saveSuper", "(I)V");
    static Signature s2 = new Signature("saveSuper", "(J)V");

    /**
     * 根据方法信息获取代理方法的编号
     * Target
     *             saveSuper()              0
     *             saveSuper(int)           1
     *             saveSuper(long)          2
     * signature 包括方法名字、参数返回值
     * @param signature
     * @return
     */
    public int getIndex(Signature signature) {
        if (s0.equals(signature)) {
            return 0;
        } else if (s1.equals(signature)) {
            return 1;
        } else if (s2.equals(signature)) {
            return 2;
        }
        return -1;
    }

    /**
     * 根据方法编号, 正常调用目标对象方法
     * @param index
     * @param proxy
     * @param args
     * @return
     */
    public Object invoke(int index, Object proxy, Object[] args) {
        if (index == 0) {
            ((Proxy) proxy).saveSuper();
            return null;
        } else if (index == 1) {
            ((Proxy) proxy).saveSuper((int) args[0]);
            return null;
        } else if (index == 2) {
            ((Proxy) proxy).saveSuper((long) args[0]);
            return null;
        } else {
            throw new RuntimeException("无此方法");
        }
    }

    public static void main(String[] args) {
        ProxyFastClass fastClass = new ProxyFastClass();
        int index = fastClass.getIndex(new Signature("saveSuper", "()V"));
        System.out.println(index);

        fastClass.invoke(index, new Proxy(), new Object[0]);
    }
}

ProxyFastClass的实现和TargetFastClass类似，只不过传入的参数是代理类本身，并且在invoke()方法中调用的是invokeSuper()方法(原始方法)。

method.invokeSuper()调用流程：

1. 当proxy被创建时，会初始化方法信息，创建MethodProxy
2. 调用method.invoke(proxy, args)时，会先根据签名获取index
3. 根据传入的proxy，target，args参数调用ProxyFastClass的invokeSuper()方法

jdk与cglib动态代理对比：

• jdk动态代理需要先预热16次，再进行优化，并且每个方法会生成一个代理类
• cglib动态代理直接就可以避免反射调用，并且一个类对应两个代理类(FastClass实现)

jdk和cglib的统一

spring的代理选择规则

aspect切面与advisor切面的区别：

1. aspect = 通知1(advice) + 切点1(pointcut)，一个aspect类中可以定义多个通知和切点。
2. advisor是更细粒度的切面，包含一个通知和切点
3. aspect最终生效解析之前会被拆解成多个advisor

使用代理增强的步骤：

1. 备好切点
2. 备好通知
3. 备好切面
4. 创建代理

切点在spring中是用org.springframework.aop.Pointcut来表示：

public interface Pointcut {
    Pointcut TRUE = TruePointcut.INSTANCE;
    // 进行类过滤
    ClassFilter getClassFilter();
    // 进行方法匹配
    MethodMatcher getMethodMatcher();
}

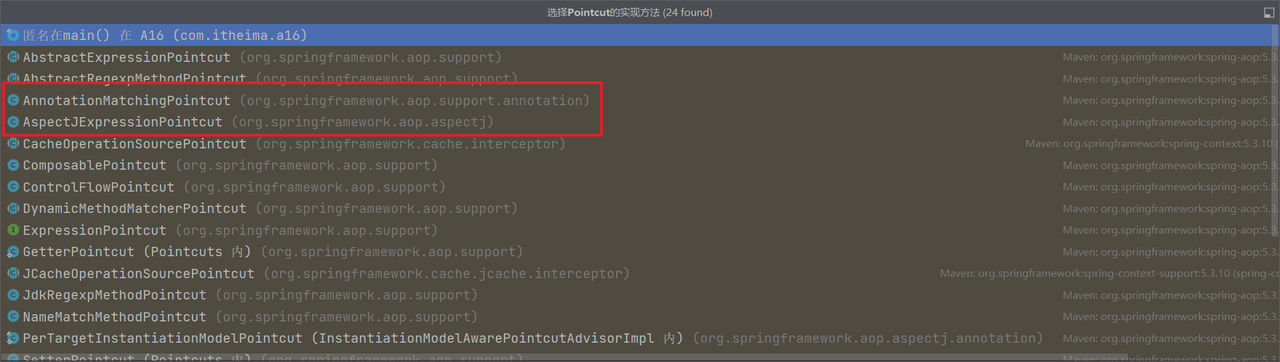

可以看到比较常用的实现：

比较重要的通知org.aopalliance.intercept.MethodInterceptor：

@FunctionalInterface
public interface MethodInterceptor extends Interceptor {
    @Nullable
    Object invoke(@Nonnull MethodInvocation invocation) throws Throwable;
}

代码演示：

public class A15 {
    public static void main(String[] args) {
        // 1. 备好切点
        AspectJExpressionPointcut pointcut = new AspectJExpressionPointcut();
        pointcut.setExpression("execution(* foo())");
        // 2. 备好通知
        MethodInterceptor advice = invocation -> {
            System.out.println("before...");
            // 调用目标
            Object result = invocation.proceed();
            System.out.println("after...");
            return result;
        };
        // 3. 备好切面
        DefaultPointcutAdvisor advisor = new DefaultPointcutAdvisor(pointcut, advice);
        // 4. 创建代理
        Target2 target = new Target2();
        ProxyFactory factory = new ProxyFactory();
        factory.setTarget(target);
        factory.addAdvisor(advisor);
        // 设置接口，使spring知道target实现了接口
        factory.setInterfaces(target.getClass().getInterfaces());
        // 设置setProxyTargetClass值
        factory.setProxyTargetClass(false);
        Target2 proxy = (Target2) factory.getProxy();
        System.out.println(proxy.getClass());
        proxy.foo();
        proxy.bar();
    }

    interface I1 {
        void foo();

        void bar();
    }

    static class Target1 implements I1 {
        public void foo() {
            System.out.println("target1 foo");
        }

        public void bar() {
            System.out.println("target1 bar");
        }
    }

    static class Target2 {
        public void foo() {
            System.out.println("target2 foo");
        }

        public void bar() {
            System.out.println("target2 bar");
        }
    }
}

spring的代理选择规则

ProxyFactory的间接父类中ProxyConfig有proxyTargetClass字段：

1. proxyTargetClass = false，目标实现了接口, 用 jdk 实现
2. proxyTargetClass = false，目标没有实现接口, 用 cglib 实现
3. proxyTargetClass = true， 总是使用 cglib 实现

底层的切点实现

介绍切点匹配的方法，编写两个示例类：

static class T1 {
    @Transactional
    public void foo() {
    }
    public void bar() {
    }
}

创建启动类，根据表达式切入：

public class A16 {
    public static void main(String[] args) throws NoSuchMethodException {
        AspectJExpressionPointcut pt1 = new AspectJExpressionPointcut();
        pt1.setExpression("execution(* bar())");
        System.out.println(pt1.matches(T1.class.getMethod("foo"), T1.class));
        System.out.println(pt1.matches(T1.class.getMethod("bar"), T1.class));
    }
}

运行启动类，查看控制台：

false
true

foo()方法没有被表达式匹配，bar()成功匹配。

创建启动类，根据注解切入：

public class A16 {
    public static void main(String[] args) throws NoSuchMethodException {
        AspectJExpressionPointcut pt2 = new AspectJExpressionPointcut();
        pt2.setExpression("@annotation(org.springframework.transaction.annotation.Transactional)");
        System.out.println(pt2.matches(T1.class.getMethod("foo"), T1.class));
        System.out.println(pt2.matches(T1.class.getMethod("bar"), T1.class));
    }
}

运行启动类，查看控制台：

true
false

foo()方法被注解匹配，bar()没有被匹配。

@Transactional注解并不是使用AspectJExpressionPointcut这种方式来实现的

@Transactional注解有多种使用方式：

1. 加在方法上

static class T1 {
    @Transactional
    public void foo() {
    }
}

1. 加在类上

@Transactional
static class T2 {
    public void foo() {
    }
}

1. 加载接口上，实现类实现了该接口的方法将会生效

@Transactional
interface I3 {
    void foo();
}
static class T3 implements I3 {
    public void foo() {
    }
}

AspectJExpressionPointcut没法处理@Transactional注解的这些场景，因此我们这里模拟解析@Transactional注解的实现：

public class A16 {
    public static void main(String[] args) throws NoSuchMethodException {
        StaticMethodMatcherPointcut pt3 = new StaticMethodMatcherPointcut() {
            @Override
            public boolean matches(Method method, Class<?> targetClass) {
                // 检查方法上是否加了 Transactional 注解
                MergedAnnotations annotations = MergedAnnotations.from(method);
                if (annotations.isPresent(Transactional.class)) {
                    return true;
                }
                // 查看类上是否加了 Transactional 注解 查看类上是否加了 Transactional 注解 搜索策略设置为TYPE_HIERARCHY会搜索本类、父类
                annotations = MergedAnnotations.from(targetClass, MergedAnnotations.SearchStrategy.TYPE_HIERARCHY);
                if (annotations.isPresent(Transactional.class)) {
                    return true;
                }
                return false;
            }
        };

        System.out.println(pt3.matches(T1.class.getMethod("foo"), T1.class));
        System.out.println(pt3.matches(T1.class.getMethod("bar"), T1.class));
        System.out.println(pt3.matches(T2.class.getMethod("foo"), T2.class));
        System.out.println(pt3.matches(T3.class.getMethod("foo"), T3.class));
    }


    static class T1 {
        @Transactional
        public void foo() {
        }
        public void bar() {
        }
    }

    @Transactional
    static class T2 {
        public void foo() {
        }
    }

    @Transactional
    interface I3 {
        void foo();
    }
    static class T3 implements I3 {
        public void foo() {
        }
    }
}

运行启动类，查看控制台：

true
false
true
true

底层的切面实现

准备代码：

package org.springframework.aop.framework.autoproxy;

import org.aopalliance.intercept.MethodInterceptor;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Before;
import org.springframework.aop.Advisor;
import org.springframework.aop.aspectj.AspectJExpressionPointcut;
import org.springframework.aop.aspectj.annotation.AnnotationAwareAspectJAutoProxyCreator;
import org.springframework.aop.support.DefaultPointcutAdvisor;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.ConfigurationClassPostProcessor;
import org.springframework.context.support.GenericApplicationContext;
import org.springframework.core.annotation.Order;

import java.util.List;

public class A17 {
    public static void main(String[] args) {
        GenericApplicationContext context = new GenericApplicationContext();
        context.registerBean("aspect1", Aspect1.class);
        context.registerBean("config", Config.class);
        context.registerBean(ConfigurationClassPostProcessor.class);
        // BeanPostProcessor
        // 创建 -> (*) 依赖注入 -> 初始化 (*)
        context.refresh();
        for (String name : context.getBeanDefinitionNames()) {
            System.out.println(name);
        }

    }

    static class Target1 {
        public void foo() {
            System.out.println("target1 foo");
        }
    }

    static class Target2 {
        public void bar() {
            System.out.println("target2 bar");
        }
    }

    @Aspect // 高级切面类
    static class Aspect1 {
        @Before("execution(* foo())")
        public void before1() {
            System.out.println("aspect1 before1...");
        }

        @Before("execution(* foo())")
        public void before2() {
            System.out.println("aspect1 before2...");
        }
    }

    @Configuration
    static class Config {
        @Bean // 低级切面
        public Advisor advisor3(MethodInterceptor advice3) {
            AspectJExpressionPointcut pointcut = new AspectJExpressionPointcut();
            pointcut.setExpression("execution(* foo())");
            DefaultPointcutAdvisor advisor = new DefaultPointcutAdvisor(pointcut, advice3);
            return advisor;
        }
        @Bean
        public MethodInterceptor advice3() {
            return invocation -> {
                System.out.println("advice3 before...");
                Object result = invocation.proceed();
                System.out.println("advice3 after...");
                return result;
            };
        }
    }

}

运行启动类，查看控制台：

aspect1
config
org.springframework.context.annotation.ConfigurationClassPostProcessor
advisor3
advice3

底层切面实现

底层切面实现用的是AnnotationAwareAspectJAutoProxyCreator，AnnotationAwareAspectJAutoProxyCreator是一个Bean后处理器，它有两个作用：

• 找到容器中所有的切面，如果是@Aspect这种高级切面，会将其转换为advisor低级切面
• 根据找到的切面创建代理对象

查看其类图：

我们发现它实现了BeanPostProcessor接口，对Bean进行了增强。AnnotationAwareAspectJAutoProxyCreator主要是在Bean依赖注入之前以及初始化之后进行了增强。它有两个比较重要的方法：

• findEligibleAdvisors()：找到有资格的切面类，主要找的是advisor，如果是高级切面，会将其转换为低级切面
• wrapIfNecessary()：针对符合要求的切面类创建代理

这两个方法都被protected方法修饰，因此我们把测试类放在org.springframework.aop.framework.autoproxy包内。

findEligibleAdvisors()

此方法的功能是：根据给定的目标类型，查找与目标类型相匹配的所有切面。

添加代码进行测试：

首先将AnnotationAwareAspectJAutoProxyCreator类注入spring容器中：

context.registerBean(AnnotationAwareAspectJAutoProxyCreator.class);

获取AnnotationAwareAspectJAutoProxyCreator，调用findEligibleAdvisors()方法，并打印切面

AnnotationAwareAspectJAutoProxyCreator creator = context.getBean(AnnotationAwareAspectJAutoProxyCreator.class);
List<Advisor> advisors = creator.findEligibleAdvisors(Target1.class, "target1");
for (Advisor advisor : advisors) {
    System.out.println(advisor);
}

查看控制台：

// spring给我们添加的切面
org.springframework.aop.interceptor.ExposeInvocationInterceptor.ADVISOR
// 高级切面@Aspect转换后的低级切面，有两个。对应Aspect1类中的before1()方法和before2()方法
InstantiationModelAwarePointcutAdvisor: expression [execution(* foo())]; advice method [public void org.springframework.aop.framework.autoproxy.A17$Aspect1.before1()]; perClauseKind=SINGLETON
InstantiationModelAwarePointcutAdvisor: expression [execution(* foo())]; advice method [public void org.springframework.aop.framework.autoproxy.A17$Aspect1.before2()]; perClauseKind=SINGLETON
// 低级切面，我们自己创建的DefaultPointcutAdvisor
org.springframework.aop.support.DefaultPointcutAdvisor: pointcut [AspectJExpressionPointcut: () execution(* foo())]; advice [org.springframework.aop.framework.autoproxy.A17$Config$$Lambda$117/0x0000000800d64fc0@558bdf1f]

wrapIfNecessary()

此方法的功能是：是否有必要为我们的目标创建代理。

思路很简单：调用findEligibleAdvisors()方法，如果返回值为空，那么说明不需要为这个类创建代理，反之需要创建单例。

添加代码进行测试：

Object o1 = creator.wrapIfNecessary(new Target1(), "target1", "target1");
System.out.println(o1.getClass());
Object o2 = creator.wrapIfNecessary(new Target2(), "target2", "target2");
System.out.println(o2.getClass());
((Target1) o1).foo();

运行启动类，查看控制台：

class org.springframework.aop.framework.autoproxy.A17$Target1$$EnhancerBySpringCGLIB$$253983d3
class org.springframework.aop.framework.autoproxy.A17$Target2
aspect1 before1...
aspect1 before2...
advice3 before...
target1 foo
advice3 after...

我们发现Target1类已经被代理，调用foo()方法也能看到对方法的增强。

代理对象创建的时机

代理对象的创建位置在依赖注入之前或者是在初始化之后。

暂时无法在飞书文档外展示此内容

准备示例代码：

public class A17_1 {

    public static void main(String[] args) {
        GenericApplicationContext context = new GenericApplicationContext();
        context.registerBean(ConfigurationClassPostProcessor.class);
        context.registerBean(Config.class);
        context.refresh();
        context.close();
    }

    @Configuration
    static class Config {
        @Bean // 解析 @Aspect、产生代理
        public AnnotationAwareAspectJAutoProxyCreator annotationAwareAspectJAutoProxyCreator() {
            return new AnnotationAwareAspectJAutoProxyCreator();
        }

        @Bean // 解析 @Autowired
        public AutowiredAnnotationBeanPostProcessor autowiredAnnotationBeanPostProcessor() {
            return new AutowiredAnnotationBeanPostProcessor();
        }

        @Bean // 解析 @PostConstruct
        public CommonAnnotationBeanPostProcessor commonAnnotationBeanPostProcessor() {
            return new CommonAnnotationBeanPostProcessor();
        }

        @Bean
        public Advisor advisor(MethodInterceptor advice) {
            AspectJExpressionPointcut pointcut = new AspectJExpressionPointcut();
            pointcut.setExpression("execution(* foo())");
            return new DefaultPointcutAdvisor(pointcut, advice);
        }

        @Bean
        public MethodInterceptor advice() {
            return (MethodInvocation invocation) -> {
                System.out.println("before...");
                return invocation.proceed();
            };
        }

        @Bean
        public Bean1 bean1() {
            return new Bean1();
        }

        @Bean
        public Bean2 bean2() {
            return new Bean2();
        }
    }

    static class Bean1 {
        public void foo() {

        }
        public Bean1() {
            System.out.println("Bean1()");
        }
        @PostConstruct public void init() {
            System.out.println("Bean1 init()");
        }
    }

    static class Bean2 {
        public Bean2() {
            System.out.println("Bean2()");
        }
        @Autowired public void setBean1(Bean1 bean1) {
            System.out.println("Bean2 setBean1(bean1) class is: " + bean1.getClass());
        }
        @PostConstruct public void init() {
            System.out.println("Bean2 init()");
        }
    }
}

上述代码Bean2依赖注入了Bean1。

查看控制台：

[INFO ] 21:59:12.415 [main] o.s.c.s.PostProcessorRegistrationDelegate$BeanPostProcessorChecker - Bean 'org.springframework.aop.framework.autoproxy.A17_1$Config' of type [org.springframework.aop.framework.autoproxy.A17_1$Config$$EnhancerBySpringCGLIB$$4ebf3912] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying)
[TRACE] 21:59:12.474 [main] o.s.a.a.a.AnnotationAwareAspectJAutoProxyCreator - Did not attempt to auto-proxy infrastructure class [org.springframework.aop.Advisor]
[TRACE] 21:59:12.476 [main] o.s.a.a.a.AnnotationAwareAspectJAutoProxyCreator - Did not attempt to auto-proxy infrastructure class [org.aopalliance.intercept.MethodInterceptor]
Bean1()
Bean1 init()
[TRACE] 21:59:12.575 [main] o.s.a.a.a.AnnotationAwareAspectJAutoProxyCreator - Creating implicit proxy for bean 'bean1' with 0 common interceptors and 2 specific interceptors
Bean2()
Bean2 setBean1(bean1) class is: class org.springframework.aop.framework.autoproxy.A17_1$Bean1$$EnhancerBySpringCGLIB$$2d106fac
Bean2 init()

发现Bean1的代理对象是在初始化之后被创建的。

更改Bean1类，使其与Bean2循环依赖：

static class Bean1 {
    public void foo() {

    }
    public Bean1() {
        System.out.println("Bean1()");
    }
    @Autowired public void setBean2(Bean2 bean2) {
        System.out.println("Bean1 setBean2(bean2) class is: " + bean2.getClass());
    }
    @PostConstruct public void init() {
        System.out.println("Bean1 init()");
    }
}

查看控制台：

[INFO ] 22:02:35.788 [main] o.s.c.s.PostProcessorRegistrationDelegate$BeanPostProcessorChecker - Bean 'org.springframework.aop.framework.autoproxy.A17_1$Config' of type [org.springframework.aop.framework.autoproxy.A17_1$Config$$EnhancerBySpringCGLIB$$4ebf3912] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying)
[TRACE] 22:02:35.850 [main] o.s.a.a.a.AnnotationAwareAspectJAutoProxyCreator - Did not attempt to auto-proxy infrastructure class [org.springframework.aop.Advisor]
[TRACE] 22:02:35.852 [main] o.s.a.a.a.AnnotationAwareAspectJAutoProxyCreator - Did not attempt to auto-proxy infrastructure class [org.aopalliance.intercept.MethodInterceptor]
Bean1()
Bean2()
[TRACE] 22:02:36.015 [main] o.s.a.a.a.AnnotationAwareAspectJAutoProxyCreator - Creating implicit proxy for bean 'bean1' with 0 common interceptors and 2 specific interceptors
Bean2 setBean1(bean1) class is: class org.springframework.aop.framework.autoproxy.A17_1$Bean1$$EnhancerBySpringCGLIB$$2741d750
Bean2 init()
Bean1 setBean2(bean2) class is: class org.springframework.aop.framework.autoproxy.A17_1$Bean2
Bean1 init()

发现Bean1代理对象的创建提前在Bean1初始化之前了，这是因为Bean2需要注入的使Bean1的代理对象，而不是原始对象。

总结：

1. 代理的创建时机
   1. 初始化之后 (无循环依赖时)
   2. 实例创建后, 依赖注入前 (有循环依赖时), 并暂存于二级缓存
2. 依赖注入与初始化不应该被增强, 仍应被施加于原始对象

高级切面转换为低级切面

在findEligibleAdvisors()方法执行时，会将遇到的Aspect切面转换为advisor的实现，这里介绍将高级切面转换为低级切面的过程。

编写示例代码：

public class A17_2 {

    static class Aspect {
        @Before("execution(* foo())")
        public void before1() {
            System.out.println("before1");
        }

        @Before("execution(* foo())")
        public void before2() {
            System.out.println("before2");
        }

        public void after() {
            System.out.println("after");
        }

        public void afterReturning() {
            System.out.println("afterReturning");
        }

        public void afterThrowing() {
            System.out.println("afterThrowing");
        }

        public Object around(ProceedingJoinPoint pjp) throws Throwable {
            try {
                System.out.println("around...before");
                return pjp.proceed();
            } finally {
                System.out.println("around...after");
            }
        }
    }

    static class Target {
        public void foo() {
            System.out.println("target foo");
        }
    }

    @SuppressWarnings("all")
    public static void main(String[] args) throws Throwable {

        AspectInstanceFactory factory = new SingletonAspectInstanceFactory(new Aspect());
        // 高级切面转低级切面类
        List<Advisor> list = new ArrayList<>();
        for (Method method : Aspect.class.getDeclaredMethods()) {
            if (method.isAnnotationPresent(Before.class)) {
                // 解析切点
                String expression = method.getAnnotation(Before.class).value();
                AspectJExpressionPointcut pointcut = new AspectJExpressionPointcut();
                pointcut.setExpression(expression);
                // 通知类
                AspectJMethodBeforeAdvice advice = new AspectJMethodBeforeAdvice(method, pointcut, factory);
                // 切面
                Advisor advisor = new DefaultPointcutAdvisor(pointcut, advice);
                list.add(advisor);
            }
        }
        for (Advisor advisor : list) {
            System.out.println(advisor);
        }

    }
}

@Before前置通知会被转换为原始的 AspectJMethodBeforeAdvice 形式，该对象包含了如下信息：

1. 通知代码从哪儿来
2. 切点是什么
3. 通知对象如何创建, 本例共用同一个Aspect对象

除了AspectJMethodBeforeAdvice，类似的通知还有：

1. AspectJAroundAdvice (环绕通知)
2. AspectJAfterReturningAdvice
3. AspectJAfterThrowingAdvice
4. AspectJAfterAdvice (环绕通知)

@Order注解

编写示例代码：

public class A17 {
    public static void main(String[] args) {
        GenericApplicationContext context = new GenericApplicationContext();
        context.registerBean("aspect1", Aspect1.class);
        context.registerBean("config", Config.class);
        context.registerBean(ConfigurationClassPostProcessor.class);
        context.registerBean(AnnotationAwareAspectJAutoProxyCreator.class);
        context.refresh();
        Object o1 = creator.wrapIfNecessary(new Target1(), "target1", "target1");
        ((Target1) o1).foo();
    }

    static class Target1 {
        public void foo() {
            System.out.println("target1 foo");
        }
    }

    static class Target2 {
        public void bar() {
            System.out.println("target2 bar");
        }
    }

    @Aspect // 高级切面类
    static class Aspect1 {
        @Before("execution(* foo())")
        public void before1() {
            System.out.println("aspect1 before1...");
        }

       @After("execution(* foo())")
       public void before2() {
           System.out.println("aspect1 after1...");
       }
    }

    @Configuration
    static class Config {
        @Bean // 低级切面
        public Advisor advisor3(MethodInterceptor advice3) {
            AspectJExpressionPointcut pointcut = new AspectJExpressionPointcut();
            pointcut.setExpression("execution(* foo())");
            DefaultPointcutAdvisor advisor = new DefaultPointcutAdvisor(pointcut, advice3);
            return advisor;
        }
        @Bean
        public MethodInterceptor advice3() {
            return invocation -> {
                System.out.println("advice3 before...");
                Object result = invocation.proceed();
                System.out.println("advice3 after...");
                return result;
            };
        }
    }

}

运行启动类，查看控制台：

advice3 before...
aspect1 before1...
target1 foo
aspect1 after1...
advice3 after...

我们发现默认advisor实现的代理先执行，@Aspect注解实现的代理后执行，对于@Aspect切面方式来讲，我们可以使用@Order注解调整代理的优先级：

@Aspect // 高级切面类
@Order(1)
static class Aspect1 {
    @Before("execution(* foo())")
    public void before1() {
        System.out.println("aspect1 before1...");
    }

    @After("execution(* foo())")
    public void before2() {
       System.out.println("aspect1 after1...");
    }
}

运行启动类，查看控制台：

aspect1 before1...
advice3 before...
target1 foo
advice3 after...
aspect1 after1...

对于advisor切面方式，我们可以使用setOrder()方法设置优先级：

@Configuration
static class Config {
    @Bean // 低级切面
    public Advisor advisor3(MethodInterceptor advice3) {
        AspectJExpressionPointcut pointcut = new AspectJExpressionPointcut();
        pointcut.setExpression("execution(* foo())");
        DefaultPointcutAdvisor advisor = new DefaultPointcutAdvisor(pointcut, advice3);
        advisor.setOrder(1);
        return advisor;
    }
    @Bean
    public MethodInterceptor advice3() {
        return invocation -> {
            System.out.println("advice3 before...");
            Object result = invocation.proceed();
            System.out.println("advice3 after...");
            return result;
        };
    }
}

运行启动类，查看控制台：

advice3 before...
aspect1 before1...
target1 foo
aspect1 after1...
advice3 after...

缺点：

• @Order注解只能加在@Aspect 类上
• 类中所有方法的order权值都相同

底层的通知实现

统一转换为环绕通知

其实无论ProxyFactory基于哪种方式创建代理, 最后干活(调用advice)的是一个MethodInvocation对象

1. 因为advisor有多个, 且一个套一个调用, 因此需要一个调用链对象, 即MethodInvocation
2. MethodInvocation要知道advice有哪些, 还要知道目标, 调用次序如下

将 MethodInvocation 放入当前线程
    |-> before1 ----------------------------------- 从当前线程获取 MethodInvocation
    |                                             |
    |   |-> before2 --------------------          | 从当前线程获取 MethodInvocation
    |   |                              |          |
    |   |   |-> target ------ 目标   advice2    advice1
    |   |                              |          |
    |   |-> after2 ---------------------          |
    |                                             |
    |-> after1 ------------------------------------

从上图看出, 环绕通知才适合作为 advice, 因此其他 before、afterReturning 都会被转换成环绕通知

统一转换为环绕通知, 体现的是设计模式中的适配器模式：

1. 对外是为了方便使用要区分 before、afterReturning
2. 对内统一都是环绕通知, 统一用 MethodInterceptor 表示

示例代码：

public class A18 {

    static class Aspect {
        @Before("execution(* foo())")
        public void before1() {
            System.out.println("before1");
        }

        @Before("execution(* foo())")
        public void before2() {
            System.out.println("before2");
        }

        public void after() {
            System.out.println("after");
        }

        @AfterReturning("execution(* foo())")
        public void afterReturning() {
            System.out.println("afterReturning");
        }

        @AfterThrowing("execution(* foo())")
        public void afterThrowing(Exception e) {
            System.out.println("afterThrowing " + e.getMessage());
        }

        @Around("execution(* foo())")
        public Object around(ProceedingJoinPoint pjp) throws Throwable {
            try {
                System.out.println("around...before");
                return pjp.proceed();
            } finally {
                System.out.println("around...after");
            }
        }
    }

    static class Target {
        public void foo() {
            System.out.println("target foo");
        }
    }

    @SuppressWarnings("all")
    public static void main(String[] args) throws Throwable {

        AspectInstanceFactory factory = new SingletonAspectInstanceFactory(new Aspect());
        // 1. 高级切面转低级切面类
        List<Advisor> list = new ArrayList<>();
        for (Method method : Aspect.class.getDeclaredMethods()) {
            if (method.isAnnotationPresent(Before.class)) {
                // 解析切点
                String expression = method.getAnnotation(Before.class).value();
                AspectJExpressionPointcut pointcut = new AspectJExpressionPointcut();
                pointcut.setExpression(expression);
                // 通知类
                AspectJMethodBeforeAdvice advice = new AspectJMethodBeforeAdvice(method, pointcut, factory);
                // 切面
                Advisor advisor = new DefaultPointcutAdvisor(pointcut, advice);
                list.add(advisor);
            } else if (method.isAnnotationPresent(AfterReturning.class)) {
                // 解析切点
                String expression = method.getAnnotation(AfterReturning.class).value();
                AspectJExpressionPointcut pointcut = new AspectJExpressionPointcut();
                pointcut.setExpression(expression);
                // 通知类
                AspectJAfterReturningAdvice advice = new AspectJAfterReturningAdvice(method, pointcut, factory);
                // 切面
                Advisor advisor = new DefaultPointcutAdvisor(pointcut, advice);
                list.add(advisor);
            } else if (method.isAnnotationPresent(Around.class)) {
                // 解析切点
                String expression = method.getAnnotation(Around.class).value();
                AspectJExpressionPointcut pointcut = new AspectJExpressionPointcut();
                pointcut.setExpression(expression);
                // 通知类
                AspectJAroundAdvice advice = new AspectJAroundAdvice(method, pointcut, factory);
                // 切面
                Advisor advisor = new DefaultPointcutAdvisor(pointcut, advice);
                list.add(advisor);
            }
        }
        for (Advisor advisor : list) {
            System.out.println(advisor);
        }
        Target target = new Target();
        ProxyFactory proxyFactory = new ProxyFactory();
        proxyFactory.setTarget(target);
        proxyFactory.addAdvisors(list);

        System.out.println(">>>>>>>>>>>>>>>>>>>>>>>>>>>>>>");
        List<Object> methodInterceptorList = proxyFactory.getInterceptorsAndDynamicInterceptionAdvice(Target.class.getMethod("foo"), Target.class);
        for (Object o : methodInterceptorList) {
            System.out.println(o);
        }

    }
}

运行启动类，查看控制台：

org.springframework.aop.support.DefaultPointcutAdvisor: pointcut [AspectJExpressionPointcut: () execution(* foo())]; advice [org.springframework.aop.aspectj.AspectJMethodBeforeAdvice: advice method [public void org.springframework.aop.framework.A18$Aspect.before1()]; aspect name '']
org.springframework.aop.support.DefaultPointcutAdvisor: pointcut [AspectJExpressionPointcut: () execution(* foo())]; advice [org.springframework.aop.aspectj.AspectJAfterReturningAdvice: advice method [public void org.springframework.aop.framework.A18$Aspect.afterReturning()]; aspect name '']
org.springframework.aop.support.DefaultPointcutAdvisor: pointcut [AspectJExpressionPointcut: () execution(* foo())]; advice [org.springframework.aop.aspectj.AspectJMethodBeforeAdvice: advice method [public void org.springframework.aop.framework.A18$Aspect.before2()]; aspect name '']
org.springframework.aop.support.DefaultPointcutAdvisor: pointcut [AspectJExpressionPointcut: () execution(* foo())]; advice [org.springframework.aop.aspectj.AspectJAroundAdvice: advice method [public java.lang.Object org.springframework.aop.framework.A18$Aspect.around(org.aspectj.lang.ProceedingJoinPoint) throws java.lang.Throwable]; aspect name '']
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
org.springframework.aop.framework.adapter.MethodBeforeAdviceInterceptor@52bf72b5
org.springframework.aop.framework.adapter.AfterReturningAdviceInterceptor@37afeb11
org.springframework.aop.framework.adapter.MethodBeforeAdviceInterceptor@515aebb0
org.springframework.aop.aspectj.AspectJAroundAdvice: advice method [public java.lang.Object org.springframework.aop.framework.A18$Aspect.around(org.aspectj.lang.ProceedingJoinPoint) throws java.lang.Throwable]; aspect name ''

我们发现AspectJMethodBeforeAdvice已经被转换为MethodBeforeAdviceInterceptor，AspectJAfterReturningAdvice被转换为AfterReturningAdviceInterceptor，AspectJAroundAdvice本身就是环绕通知，不用被转换。

事实上只要实现MethodInterceptor接口的都不用转换：

1. AspectJMethodBeforeAdvice(前置通知)：未实现MethodInterceptor接口。
2. AspectJAroundAdvice(环绕通知)：实现了MethodInterceptor接口。
3. AspectJAfterReturningAdvice：未实现MethodInterceptor接口。
4. AspectJAfterThrowingAdvice：实现了MethodInterceptor接口。
5. AspectJAfterAdvice：实现了MethodInterceptor接口。

适配器模式

对于通知解析，我们需要的是MethodInterceptor接口，但解析后可能是另外的接口，因此需要将不符合MethodInterceptor接口的类转换为实现MethodInterceptor接口的类，这就需要使用到适配器模式。

1. 统一转换为 MethodInterceptor环绕通知, 这体现在方法名中的Interceptors上
2. 适配如下：
   1. MethodBeforeAdviceAdapter将@Before AspectJMethodBeforeAdvice 适配为MethodBeforeAdviceInterceptor
   2. AfterReturningAdviceAdapter将 @AfterReturning AspectJAfterReturningAdvice适配为 AfterReturningAdviceInterceptor

我们可以查看MethodBeforeAdviceAdapter类：

class MethodBeforeAdviceAdapter implements AdvisorAdapter, Serializable {
    MethodBeforeAdviceAdapter() {
    }

    /**
    * 判断是否属于MethodBeforeAdvice
    */
    public boolean supportsAdvice(Advice advice) {
        return advice instanceof MethodBeforeAdvice;
    }

    /**
    * 将Advice转换为MethodInterceptor
    */
    public MethodInterceptor getInterceptor(Advisor advisor) {
        MethodBeforeAdvice advice = (MethodBeforeAdvice)advisor.getAdvice();
        return new MethodBeforeAdviceInterceptor(advice);
    }
}

查看AfterReturningAdviceAdapter类：

class AfterReturningAdviceAdapter implements AdvisorAdapter, Serializable {
    AfterReturningAdviceAdapter() {
    }

    /**
    * 判断是否属于AfterReturningAdvice
    */
    public boolean supportsAdvice(Advice advice) {
        return advice instanceof AfterReturningAdvice;
    }

    /**
    * 将Advice转换为MethodInterceptor
    */
    public MethodInterceptor getInterceptor(Advisor advisor) {
        AfterReturningAdvice advice = (AfterReturningAdvice)advisor.getAdvice();
        return new AfterReturningAdviceInterceptor(advice);
    }
}

调用链的执行

通知统一转换为环绕通知之后，需要使用调用链来进行调用，调用链=所有的环绕通知+目标。

添加调用链并执行：

// 3. 创建并执行调用链 (环绕通知s + 目标)
MethodInvocation methodInvocation = new ReflectiveMethodInvocation(
        null, target, Target.class.getMethod("foo"), new Object[0], Target.class, methodInterceptorList
);
methodInvocation.proceed();

运行后会发现报错：

Exception in thread "main" java.lang.IllegalStateException: No MethodInvocation found: Check that an AOP invocation is in progress and that the ExposeInvocationInterceptor is upfront in the interceptor chain. Specifically, note that advices with order HIGHEST_PRECEDENCE will execute before ExposeInvocationInterceptor! In addition, ExposeInvocationInterceptor and ExposeInvocationInterceptor.currentInvocation() must be invoked from the same thread.
        at org.springframework.aop.interceptor.ExposeInvocationInterceptor.currentInvocation(ExposeInvocationInterceptor.java:74)
        at org.springframework.aop.aspectj.AbstractAspectJAdvice.getJoinPointMatch(AbstractAspectJAdvice.java:658)
        at org.springframework.aop.aspectj.AspectJMethodBeforeAdvice.before(AspectJMethodBeforeAdvice.java:44)
        at org.springframework.aop.framework.adapter.MethodBeforeAdviceInterceptor.invoke(MethodBeforeAdviceInterceptor.java:57)
        at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:186)
        at org.springframework.aop.framework.A18.main(A18.java:162)

这是因为某些通知内部需要用到调用链对象，所以应该在最外层将调用链对象准备好，将 MethodInvocation 放入当前线程：

proxyFactory.addAdvice(ExposeInvocationInterceptor.INSTANCE); // 准备把 MethodInvocation 放入当前线程

完整示例代码：

public class A18 {

    static class Aspect {
        @Before("execution(* foo())")
        public void before1() {
            System.out.println("before1");
        }

        @Before("execution(* foo())")
        public void before2() {
            System.out.println("before2");
        }

        public void after() {
            System.out.println("after");
        }

        @AfterReturning("execution(* foo())")
        public void afterReturning() {
            System.out.println("afterReturning");
        }

        @AfterThrowing("execution(* foo())")
        public void afterThrowing(Exception e) {
            System.out.println("afterThrowing " + e.getMessage());
        }

        @Around("execution(* foo())")
        public Object around(ProceedingJoinPoint pjp) throws Throwable {
            try {
                System.out.println("around...before");
                return pjp.proceed();
            } finally {
                System.out.println("around...after");
            }
        }
    }

    static class Target {
        public void foo() {
            System.out.println("target foo");
        }
    }

    @SuppressWarnings("all")
    public static void main(String[] args) throws Throwable {

        AspectInstanceFactory factory = new SingletonAspectInstanceFactory(new Aspect());
        // 1. 高级切面转低级切面类
        List<Advisor> list = new ArrayList<>();
        for (Method method : Aspect.class.getDeclaredMethods()) {
            if (method.isAnnotationPresent(Before.class)) {
                // 解析切点
                String expression = method.getAnnotation(Before.class).value();
                AspectJExpressionPointcut pointcut = new AspectJExpressionPointcut();
                pointcut.setExpression(expression);
                // 通知类
                AspectJMethodBeforeAdvice advice = new AspectJMethodBeforeAdvice(method, pointcut, factory);
                // 切面
                Advisor advisor = new DefaultPointcutAdvisor(pointcut, advice);
                list.add(advisor);
            } else if (method.isAnnotationPresent(AfterReturning.class)) {
                // 解析切点
                String expression = method.getAnnotation(AfterReturning.class).value();
                AspectJExpressionPointcut pointcut = new AspectJExpressionPointcut();
                pointcut.setExpression(expression);
                // 通知类
                AspectJAfterReturningAdvice advice = new AspectJAfterReturningAdvice(method, pointcut, factory);
                // 切面
                Advisor advisor = new DefaultPointcutAdvisor(pointcut, advice);
                list.add(advisor);
            } else if (method.isAnnotationPresent(Around.class)) {
                // 解析切点
                String expression = method.getAnnotation(Around.class).value();
                AspectJExpressionPointcut pointcut = new AspectJExpressionPointcut();
                pointcut.setExpression(expression);
                // 通知类
                AspectJAroundAdvice advice = new AspectJAroundAdvice(method, pointcut, factory);
                // 切面
                Advisor advisor = new DefaultPointcutAdvisor(pointcut, advice);
                list.add(advisor);
            }
        }
        for (Advisor advisor : list) {
            System.out.println(advisor);
        }
        Target target = new Target();
        ProxyFactory proxyFactory = new ProxyFactory();
        proxyFactory.setTarget(target);
        proxyFactory.addAdvice(ExposeInvocationInterceptor.INSTANCE); // 准备把 MethodInvocation 放入当前线程
        proxyFactory.addAdvisors(list);

        System.out.println(">>>>>>>>>>>>>>>>>>>>>>>>>>>>>>");
        List<Object> methodInterceptorList = proxyFactory.getInterceptorsAndDynamicInterceptionAdvice(Target.class.getMethod("foo"), Target.class);
        for (Object o : methodInterceptorList) {
            System.out.println(o);
        }
        System.out.println(">>>>>>>>>>>>>>>>>>>>>>>>>>>>>>");
        // 3. 创建并执行调用链 (环绕通知s + 目标)
        MethodInvocation methodInvocation = new ReflectiveMethodInvocation(
                null, target, Target.class.getMethod("foo"), new Object[0], Target.class, methodInterceptorList
        );
        methodInvocation.proceed();
    }

}

运行启动类，查看控制台：

org.springframework.aop.support.DefaultPointcutAdvisor: pointcut [AspectJExpressionPointcut: () execution(* foo())]; advice [org.springframework.aop.aspectj.AspectJMethodBeforeAdvice: advice method [public void org.springframework.aop.framework.A18$Aspect.before1()]; aspect name '']
org.springframework.aop.support.DefaultPointcutAdvisor: pointcut [AspectJExpressionPointcut: () execution(* foo())]; advice [org.springframework.aop.aspectj.AspectJMethodBeforeAdvice: advice method [public void org.springframework.aop.framework.A18$Aspect.before2()]; aspect name '']
org.springframework.aop.support.DefaultPointcutAdvisor: pointcut [AspectJExpressionPointcut: () execution(* foo())]; advice [org.springframework.aop.aspectj.AspectJAroundAdvice: advice method [public java.lang.Object org.springframework.aop.framework.A18$Aspect.around(org.aspectj.lang.ProceedingJoinPoint) throws java.lang.Throwable]; aspect name '']
org.springframework.aop.support.DefaultPointcutAdvisor: pointcut [AspectJExpressionPointcut: () execution(* foo())]; advice [org.springframework.aop.aspectj.AspectJAfterReturningAdvice: advice method [public void org.springframework.aop.framework.A18$Aspect.afterReturning()]; aspect name '']
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
org.springframework.aop.interceptor.ExposeInvocationInterceptor@1d2adfbe
org.springframework.aop.framework.adapter.MethodBeforeAdviceInterceptor@36902638
org.springframework.aop.framework.adapter.MethodBeforeAdviceInterceptor@223d2c72
org.springframework.aop.aspectj.AspectJAroundAdvice: advice method [public java.lang.Object org.springframework.aop.framework.A18$Aspect.around(org.aspectj.lang.ProceedingJoinPoint) throws java.lang.Throwable]; aspect name ''
org.springframework.aop.framework.adapter.AfterReturningAdviceInterceptor@8f4ea7c
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
before1
before2
around...before
target foo
afterReturning
around...after

成功执行了调用链。

模拟实现调用链

调用链实际上是使用的责任链模式，示例代码实现：

/**
 * 模拟调用链过程, 是一个简单的递归过程
 *         1. proceed() 方法调用链中下一个环绕通知
 *         2. 每个环绕通知内部继续调用 proceed()
 *         3. 调用到没有更多通知了, 就调用目标方法
 */
public class A18_1 {

    static class Target {
        public void foo() {
            System.out.println("Target.foo()");
        }
    }

    static class Advice1 implements MethodInterceptor {
        public Object invoke(MethodInvocation invocation) throws Throwable {
            System.out.println("Advice1.before()");
            Object result = invocation.proceed();// 调用下一个通知或目标
            System.out.println("Advice1.after()");
            return result;
        }
    }

    static class Advice2 implements MethodInterceptor {
        public Object invoke(MethodInvocation invocation) throws Throwable {
            System.out.println("Advice2.before()");
            Object result = invocation.proceed();// 调用下一个通知或目标
            System.out.println("Advice2.after()");
            return result;
        }
    }


    static class MyInvocation implements MethodInvocation {
        private Object target;  // 1
        private Method method;
        private Object[] args;
        List<MethodInterceptor> methodInterceptorList; // 2
        private int count = 1; // 调用次数

        public MyInvocation(Object target, Method method, Object[] args, List<MethodInterceptor> methodInterceptorList) {
            this.target = target;
            this.method = method;
            this.args = args;
            this.methodInterceptorList = methodInterceptorList;
        }

        @Override
        public Method getMethod() {
            return method;
        }

        @Override
        public Object[] getArguments() {
            return args;
        }

        @Override
        public Object proceed() throws Throwable { // 调用每一个环绕通知, 调用目标
            if (count > methodInterceptorList.size()) {
                // 调用目标， 返回并结束递归
                return method.invoke(target, args);
            }
            // 逐一调用通知, count + 1
            MethodInterceptor methodInterceptor = methodInterceptorList.get(count++ - 1);
            return methodInterceptor.invoke(this);
        }

        @Override
        public Object getThis() {
            return target;
        }

        @Override
        public AccessibleObject getStaticPart() {
            return method;
        }
    }

    public static void main(String[] args) throws Throwable {
        Target target = new Target();
        List<MethodInterceptor> list = List.of(
                new Advice1(),
                new Advice2()
        );
        MyInvocation invocation = new MyInvocation(target, Target.class.getMethod("foo"), new Object[0], list);
        invocation.proceed();
    }
}

运行启动类，查看控制台：

Advice1.before()
Advice2.before()
Target.foo()
Advice2.after()
Advice1.after()

动态通知调用

静态通知与动态通知对比：

1. 静态通知调用，不带参数绑定，执行时不需要切点
2. 动态通知调用，需要参数绑定，执行时还需要切点对象

@Aspect
static class MyAspect {

    /**
    * 静态通知调用
    */
    @Before("execution(* foo(..))") //
    public void before1() {
        System.out.println("before1");
    }

    /**
    * 动态通知调用
    */
    @Before("execution(* foo(..)) && args(x)")
    public void before2(int x) {
        System.out.printf("before2(%d)%n", x);
    }
}

示例代码：

public class A19 {

    @Aspect
    static class MyAspect {
        @Before("execution(* foo(..))") // 静态通知调用，不带参数绑定，执行时不需要切点
        public void before1() {
            System.out.println("before1");
        }

        @Before("execution(* foo(..)) && args(x)") // 动态通知调用，需要参数绑定，执行时还需要切点对象
        public void before2(int x) {
            System.out.printf("before2(%d)%n", x);
        }
    }

    static class Target {
        public void foo(int x) {
            System.out.printf("target foo(%d)%n", x);
        }
    }

    @Configuration
    static class MyConfig {
        @Bean
        AnnotationAwareAspectJAutoProxyCreator proxyCreator() {
            return new AnnotationAwareAspectJAutoProxyCreator();
        }

        @Bean
        public MyAspect myAspect() {
            return new MyAspect();
        }
    }

    public static void main(String[] args) throws Throwable {
        GenericApplicationContext context = new GenericApplicationContext();
        context.registerBean(ConfigurationClassPostProcessor.class);
        context.registerBean(MyConfig.class);
        context.refresh();

        AnnotationAwareAspectJAutoProxyCreator creator = context.getBean(AnnotationAwareAspectJAutoProxyCreator.class);
        List<Advisor> list = creator.findEligibleAdvisors(Target.class, "target");

        Target target = new Target();
        ProxyFactory factory = new ProxyFactory();
        factory.setTarget(target);
        factory.addAdvisors(list);
        Object proxy = factory.getProxy(); // 获取代理

        List<Object> interceptorList = factory.getInterceptorsAndDynamicInterceptionAdvice(Target.class.getMethod("foo", int.class), Target.class);
        for (Object o : interceptorList) {
            showDetail(o);
        }

        System.out.println(">>>>>>>>>>>>>>>>>>>>>>>>>>");
        ReflectiveMethodInvocation invocation = new ReflectiveMethodInvocation(
                proxy, target, Target.class.getMethod("foo", int.class), new Object[]{100}, Target.class, interceptorList
        ) {};

        invocation.proceed();
    }

    public static void showDetail(Object o) {
        try {
            Class<?> clazz = Class.forName("org.springframework.aop.framework.InterceptorAndDynamicMethodMatcher");
            if (clazz.isInstance(o)) {
                Field methodMatcher = clazz.getDeclaredField("methodMatcher");
                methodMatcher.setAccessible(true);
                Field methodInterceptor = clazz.getDeclaredField("interceptor");
                methodInterceptor.setAccessible(true);
                System.out.println("环绕通知和切点：" + o);
                System.out.println("\t切点为：" + methodMatcher.get(o));
                System.out.println("\t通知为：" + methodInterceptor.get(o));
            } else {
                System.out.println("普通环绕通知：" + o);
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

运行启动类，查看控制台：

[INFO ] 16:25:32.123 [main] o.s.c.s.PostProcessorRegistrationDelegate$BeanPostProcessorChecker - Bean 'org.springframework.aop.framework.autoproxy.A19$MyConfig' of type [org.springframework.aop.framework.autoproxy.A19$MyConfig$$EnhancerBySpringCGLIB$$4d8924fd] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying)
普通环绕通知：org.springframework.aop.interceptor.ExposeInvocationInterceptor@63fbfaeb
普通环绕通知：org.springframework.aop.framework.adapter.MethodBeforeAdviceInterceptor@2c07545f
环绕通知和切点：org.springframework.aop.framework.InterceptorAndDynamicMethodMatcher@e57b96d
        切点为：AspectJExpressionPointcut: (int x) execution(* foo(..)) && args(x)
        通知为：org.springframework.aop.framework.adapter.MethodBeforeAdviceInterceptor@34c01041
>>>>>>>>>>>>>>>>>>>>>>>>>>
before1
before2(100)
target foo(100)

进入InterceptorAndDynamicMethodMatcher中，我们发现它没有实现MethodInterceptor接口，但其成员变量却有：

// 记录通知
final MethodInterceptor interceptor;
// 记录切点
final MethodMatcher methodMatcher;

我们在使用invocation调用的时候，需要传入参数。

总结：

1. 有参数绑定的通知调用时还需要切点，对参数进行匹配及绑定
2. 复杂程度高, 性能比无参数绑定的通知调用低
